TL Lite Installation Manual

PosiTracker™|TL Lite LTE

Installation Guide

Before Installation begins:

1. Write down the IMEI number of your device..
2. Write down vehicle identification such as License Plate or VIN.
3. Recommended: photograph the installation location of the device.
4. Find appropriate mounting location.



Installation Checklist:

• A clear understanding of vehicle wiring and installation procedure. Where needed, please use a qualified +12-Volt  installer skilled in vehicle electrical systems.


• Correct gauge and length of additional wiring required to reach the connection sources in your particular vehicle.


• Confirm / Verify polarity, battery voltage (10-30 Volts DC) & ground with a multimeter where needed.


• Mounting location free from GPS-obscuring material, extreme heat, moisture and excess dirt, or excessive vibration.


• Device oriented with “This Side Up” text facing the sky.


• Install all wiring connections securely with some slack in wires.


• Follow enclosed wiring diagrams and color code chart.

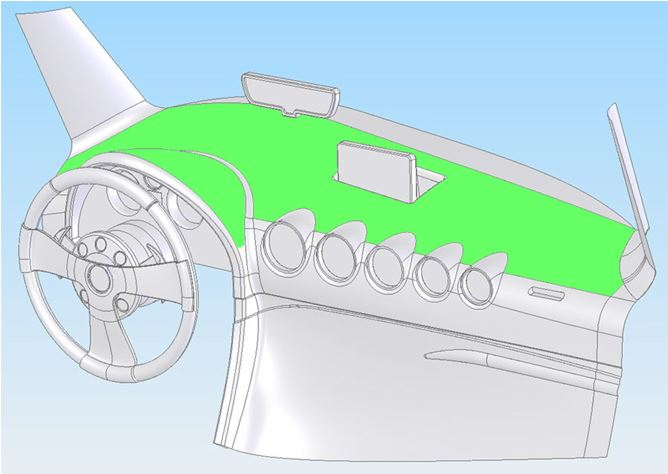

Recommended Installation Location

Basic Overview of 3-wire Install

Basic Installation:

Ignition: Pin 3 (Yellow) - Positive voltage must be provided only when ignition is running, and zero volts when the ignition is off. Recommended connection: 3rd (run) position on ignition switch, or fuse panel ignition source.

Never connect ignition to Accessories, or a power source connected to an accessory, which may result in unstable ignition detection which will affect video recording.

Power: Pin 1 (Red) connects with constant, uninterrupted, +12/24 Volt power is required to operate the device.

Ground: Pin 2 (Black) connects with a designated ground point or wire.

Connecting the GND at an arbitrary point on the mass of the vehicle may result in unstable device operation or failure.

Optional Features Wiring:

Optional features are sold through your Account Manager

1. Power Take Off (PTO): monitor external accessory and receive its on / off status (eg. salter, lift, axle, lights, seatbelt). Connect to Pin 4 (gray), positive trigger.
2. Immobilizer: Remotely prevent a vehicle from starting through the PosiTrace platform. Uses Pin 5 (white) on the wiring harness, ground trigger and requires an additional automotive relay.
3. Panic button: A button (sold separately) triggered by driver to notify dispatcher about a dangerous or problem situation. Connected to Pin 4 (Gray).
4. BLE tags and sensors (please contact your account manager)

Wiring color chart:

	Label	Cable Color	Function
Pin 1	VCC	Red	Constant Power (+10-30V DC)
Pin 2	GND	Black	Constant ground, Driver ID Ground
Pin 3	DIN1	Yellow	Ignition
Pin 4	AIN1	Grey	PTO or Alarm (0-30 V DC) Analog
Pin 5	DOUT1	White	Immobilizer* (Digital output, open collector output. Max. 3,3 PinA DC.)

*Immobilizer: requires automotive relay

LED reference:
Immobilizer Wiring

Status LED	Description
Blinks: 1x every 1 second	Normal operation
Blinks: 1x every 2 seconds	Sleep Mode
Blinks quickly for a short time	Modem Activity
OFF	Not working, not powered, or device is in boot mode
Navigation LED	Description
Steady: ON	No GPS signal
Blinks: 1x every 1 second	Normal operation
OFF	Sleep mode OR Device not working
Blinking Fast Constantly	Device firmware is being updated

	Relay Type 1	Relay Type 2	Function
	Pin 85	Pin 85	PosiTracker Device (Pin 8 - White)
	Pin 86	Pin 86	Triggered positive voltage (+12V)
	Pin 30	Pin 30	Starter wire; engine
	Pin 87a	Pin 87a	Starter wire; ignition (switch)
	Pin 87	Pin 87	not in use - opposite from 87a
