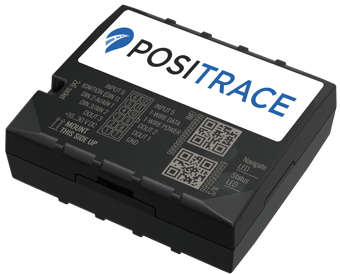

PosiTracker™|TL LTE
Driver ID Setup

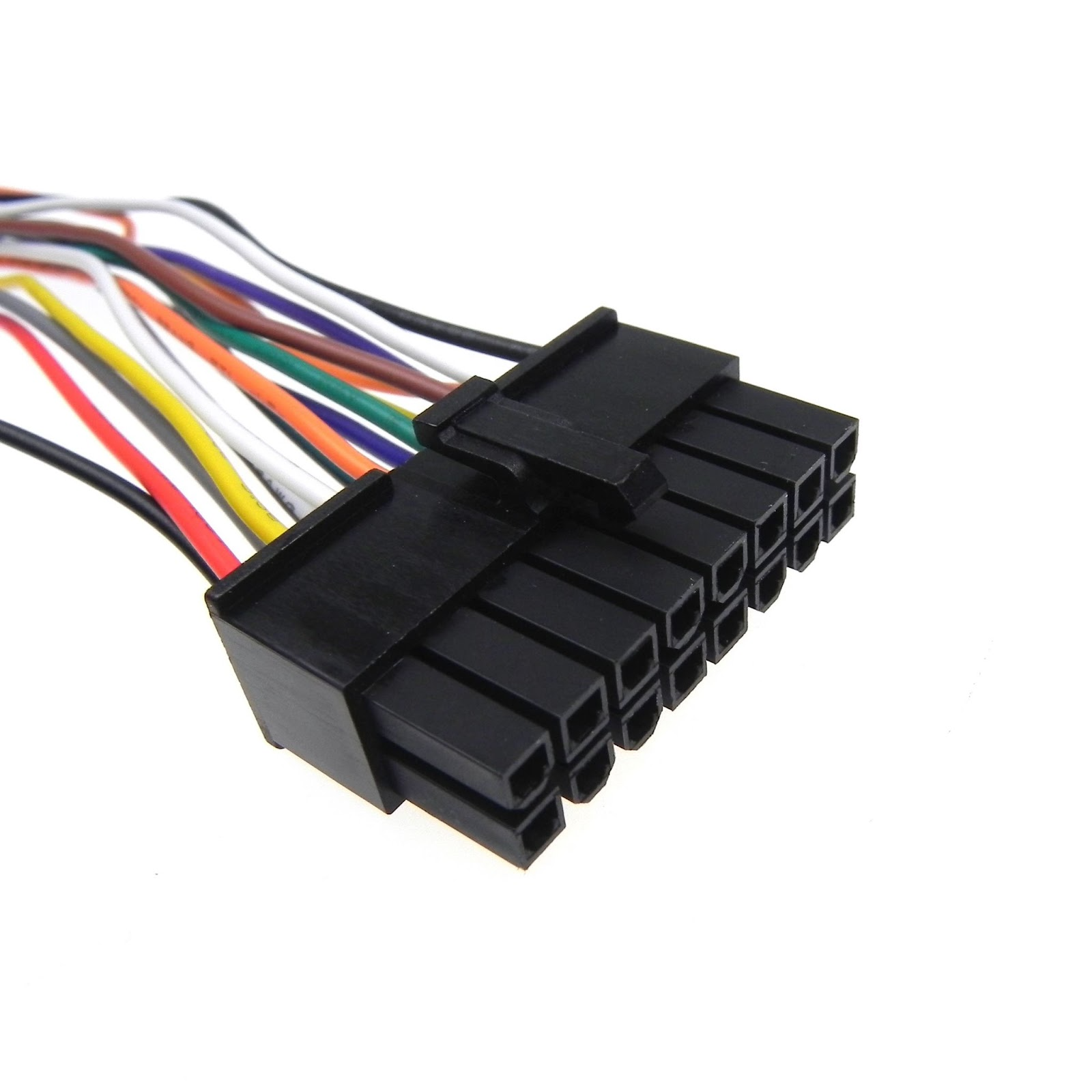

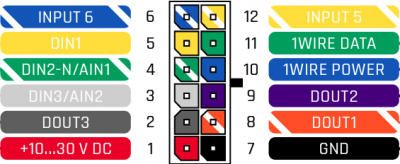

Wiring color chart:
|
Pin |
Label |
Cable Color |
Function |
|
Pin 1 |
+10…30VDC |
Red |
Constant Power (+10-30V DC) |
|
Pin 2 |
DOUT3 |
Gray |
Output 3 (Max. 0.5A DC) |
|
Pin 3 |
DIN3 |
White |
Panic button / Alarm (0-30 V DC / Power | PosiTrace input 2) ** |
|
Pin 4 |
DIN2 |
Green / White |
PTO* (0-30 V DC with option to be Ground Trigger | PosiTrace input 1) |
|
Pin 5 |
DIN1 |
Yellow |
Ignition |
|
Pin 6 |
INPUT 6 |
Blue / White |
Not in use (TX EXT) |
|
Pin 7 |
GND |
Black |
Constant ground, Driver ID Ground |
|
Pin 8 |
DOUT1 |
Orange / White |
Immobilizer* (digital output 0.5A DC) |
|
Pin 9 |
DOUT2 |
Purple |
Digital output (Max. 0.5A DC) |
|
Pin 10 |
1WIRE PWR |
Blue |
Temperature sensor |
|
Pin 11 |
1WIRE DATA |
Green |
Temperature sensor, Driver ID Data |
|
Pin 12 |
INPUT 5 |
Yellow / White |
Not in use (RX EXT) |
DIN2-N – PosiTrace Input 1 in PosiTrace Locate (Default: PTO
DIN3 – PosiTrace Input 2 (Default: Panic Button, can also be PTO)
* For ground trigger option on PTO input Green/White wire, please contact Support for updated configuration.
LED reference:
|
Status LED |
Description |
|
Blinks: 1x every 1 second |
Normal operation |
|
Blinks: 1x every 2 seconds |
Sleep Mode |
|
Blinks quickly for a short time |
Modem Activity |
|
OFF |
Not working, not powered, |
|
Navigation LED |
Description |
|
Steady: ON |
No GPS signal |
|
Blinks: 1x every 1 second |
Normal operation |
|
OFF |
Sleep mode OR |
|
Blinking Fast Constantly |
Device firmware is being updated |
Driver ID (no LED):
|
PosiTracker TL LTE |
Driver ID |
|
Pin 7 (Black) ground |
Ground (black) |
|
Pin 11 (Green) data |
Data (grey) |
 |
 |
Buzzer Install (optional) Please ensure buzzer is set up in the PosiTrace Platform before installing
Buzzer is compatible up to 24V of power. Connecting to Pin 10 Blue will provide low voltage / lower volume. Connecting to Pin 1 Red provides 12V or 24V depending on vehicle and produces louder volume.
|
PosiTracker TL LTE |
Driver ID |
|
Pin 9 (Purple) Output 2 |
Ground (black) |
|
Pin 10 (Blue) PWR 3V |
PWR (red) Choose 1 pwr option |
|
Pin 1 (Red) PWR 12V |
|
 |
 |
Tap behavior:
When tapping your key, please remember it is a tap and not a swipe. Firmly attach the Driver ID fob to the reader in full and leave for 2 to 3 seconds to ensure reading is completed.
If you have installed the buzzer, a short beep will occur when there has been a successful read of the Driver Key, after which it is safe to remove the key. This only occurs after successful buzzer setup below.
If your buzzer makes a long beep (5 seconds) – your install is correct, but you have not completed the buzzer setup below on the PosiTrace Platform.
Buzzer Setup:
The Buzzer should be assigned to output 2 in the PosiTrace Locate platform which will reduce the sound from 5 seconds (long beep) to 200 milliseconds (short beep). Please make sure each of your devices has an Equipment Name before proceeding.

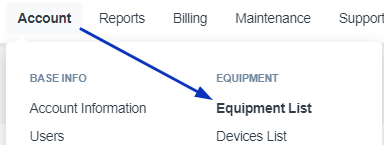

Navigate to Account > Equipment List, select each equipment name, and under Sensors add the Buzzer to the correct output.
- Account > Equipment List
- Use the magnifying glass (View Details) icon, or click on the Equipment name.

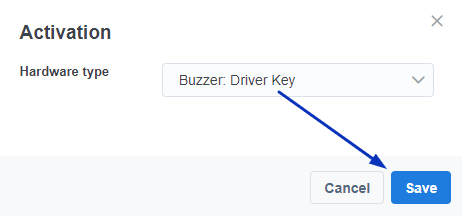

- Select the Inputs / Outputs tab, and add your Buzzer into Output 2

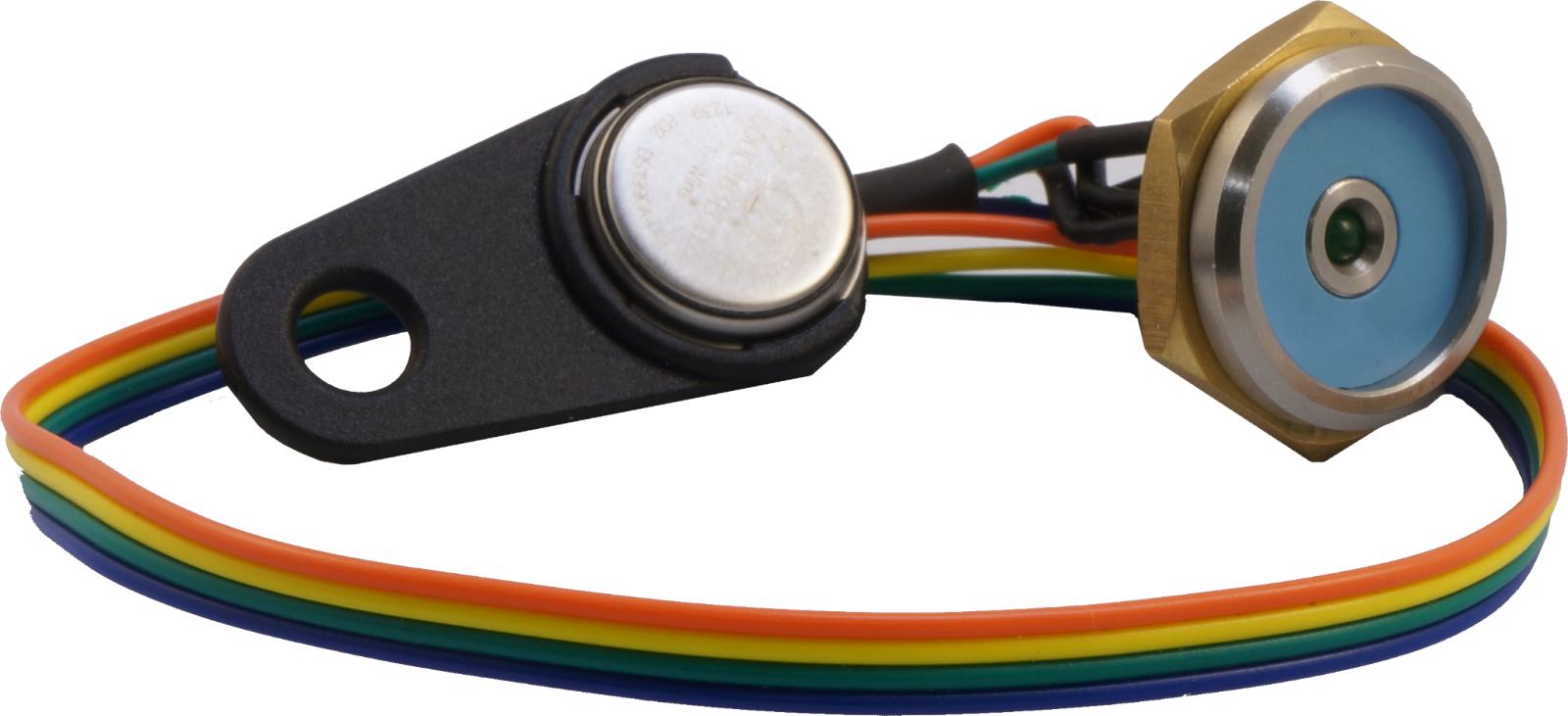

Driver ID (with LED):
The below shows where to connect the wires of a four-wired Driver ID reader with LED light. (Wiring the light is optional and can be skipped if the LED behavior is not needed)
|
PosiTracker TL LTE |
Driver ID |
|
Pin 7 (Black) ground |
Blue |
|
Pin 11 (solid green) data |
Green |
|
LED Control |
Yellow |
|
LED PWR |
Orange |
 |
 |
Tap behavior:
Firmly tap the Driver ID fob to the reader. When the tap is successful, the LED light will come ON for 5 seconds, before going off on its own. If you do not see the LED light, please tap again.
