QLw Installation Manual

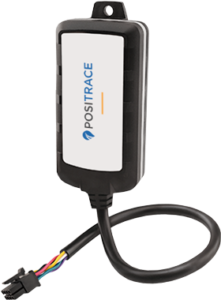

PosiTracker™|QLw

Installation Guide

Installation Checklist:

1. A clear understanding of wiring diagram and installation procedure
   • Recommended: Qualified vehicle electrical system installer.
2. Correct gauge and length of any additional wiring
3. Verify polarity, battery voltage (8-32 Volts DC) & ground with voltmeter
4. Mounting location free from GPS-obscuring material & extreme heat / vibration. Install with sticker toward the sky.
   • Your QLw device is Water-Resistant  (IP67 Compliant)
5. Install all wiring connections securely with some slack in wires
6. Follow enclosed wiring diagrams and color code chart in Appendix

Installation Instructions:

1. PosiTracker|QLw mounting location
   1. Identify solid, heat / vibration / moisture-free mounting location Recommended: between windshield and dashboard under top plastic cover.
   2. Ensure location is not covered by any metal parts
   3. Ensure the label faces up toward the sky
   4. Secure mounting after wiring is completed and tested
2. Before installing device into vehicle:
   1. Write down IMEI number (under barcode) of the device
   2. Write down license plate/VIN or any identification number of vehicle
      • Recommended: take pictures of device location and installation for future references. You can also forward them to support@positrace.com with device IMEI number to keep them on file.
3. Basic installation (diagram available at the end):
   1. Pin 1 (red) - constant power from 8 to 32 Volts DC.
      Recommended connection: positive contact on main vehicle battery.
   2. Pin 2 (black) - ground.
      Recommended connection: negative contact on main vehicle battery.
   3. Pin 4 (white) - ignition detection. Positive voltage must be provided only when ignition is running, and zero volts when the ignition is off.
      • Recommended connection: 3rd (run) position on ignition switch, or fuse panel “ignition” source if available. Please note - if connected to accessories, false trips and incorrect idling may occur.
      • Alternate ignition wiring: If an ignition source is not easily found, you may leave the white ignition wire completely disconnected. Please contact Support with your IMEI # and let us know. We will set your device for Virtual Ignition. (Be aware: live ignition is always more accurate than Virtual Ignition)
4. Optional:
   1. Pin 3 (yellow) - PTO equipment (requires triggered ground source)
   2. Pin 5 (green) - Immobilizer installation, please refer to “Immobilizer Installation Guide”. Requires automotive relay hardware.

Appendix

Wiring color code chart:

* please refer to “Immobilizer Installation Guide”

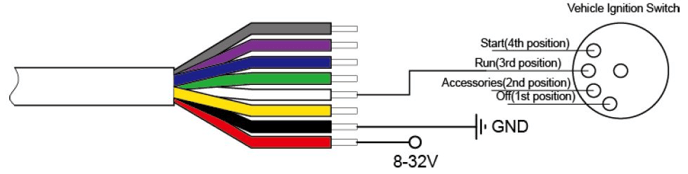

Installation Diagram:

LED reference:
