PosiTracker™
Immobilizer
Installation Guide

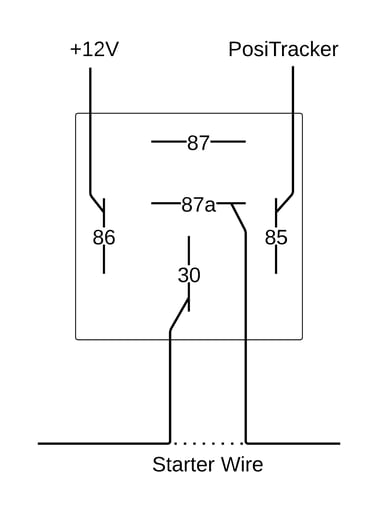

PosiTracker Immobilizer pinouts:
If for the ignition detection, the GPS device uses the same ignition/starter wire that is cut by immobilizer relay, such relay must be installed AFTER the ignition detection wire connection
Wiring Color Code Chart:
|
Relay Type 1* |
Relay Type 2* |
Function |
|
Pin 85 (White) |
Pin 85 (Yellow) |
PosiTracker Device ** (triggered ground) |
|
Pin 86 (Black) |
Pin 86 (Yellow) |
Triggered positive voltage*** (+12V) |
|
Pin 30 (Blue) |
Pin 30 (Blue) |
Starter wire; engine |
|
Pin 87a (Red) |
Pin 87a (Red) |
Starter wire; ignition (switch) |
|
Pin 87 (Yellow) |
Pin 87 (Black) |
not in use - opposite from 87a |
Notes:

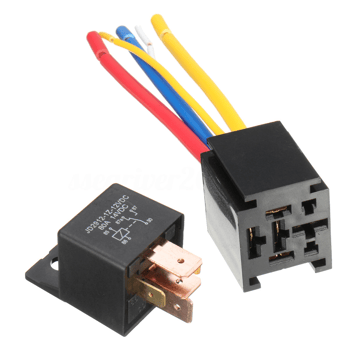

- If relay harness has 1 yellow cable - use relay 1 color scheme
- If relay harness has 2 yellow cables - use relay 2 color scheme.
- Refer to device installation guide to find the proper wire
- For “Triggered positive voltage” source it is better to use a wire that will provide positive voltage when the key is in the “Run” and “Crank” positions to prevent excessive vehicle’s battery drain. Can be a constant positive power from battery (+), but battery will be drained quicker.
- Immobilizer is a relay which can be controlled remotely. User accepts all the risk associated with having an ability to use it remotely and is solely responsible for any incorrect or untimely use that may potentially lead to risk of loss, liability, damage or costs, including but not limited to body injury or property damage.
- Immobilizer can be controlled by a DriverID Key locally for certain device types (requires DriverID Reader installation, DriverID Key and DriverID feature enabled).
- Please contact your account manager by calling 1-877-787-2231 or email to support@positrace.com if you are interested in this feature.
